Crane rail

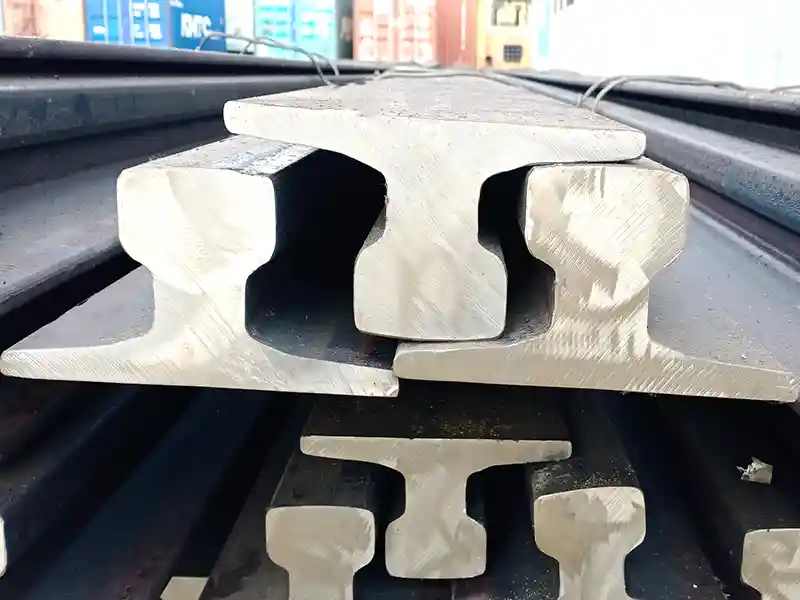

What is Crane Rail?

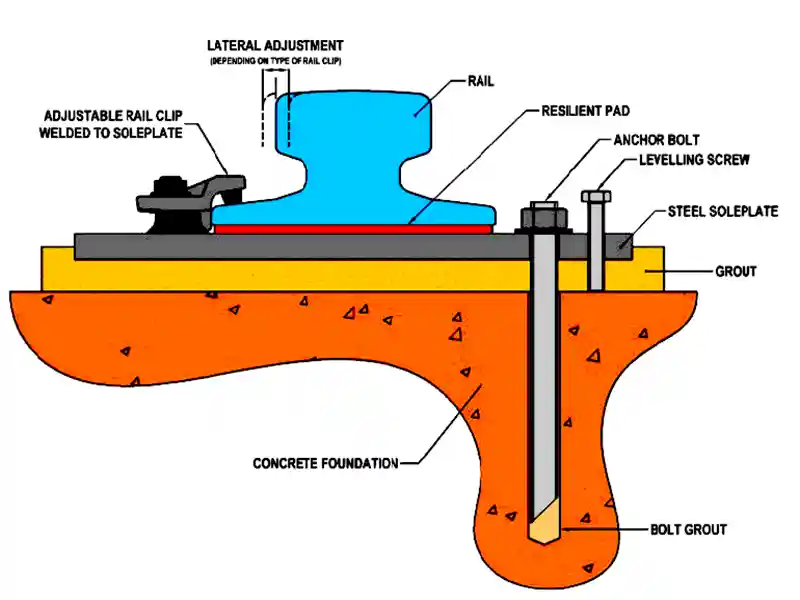

Complete Composition of Crane Track System
- Main Body Crane rails (standard/custom models) – the core load-bearing part of the track system, directly determining the operation accuracy and stability of lifting equipment, and the basic carrier for equipment movement.
- Fixing Parts Rail clips (rubber-headed self-locking/bolted/welded), fish plates, and anchor/chemical bolts firmly fix the rail to the foundation, prevent lateral and longitudinal displacement during operation, and ensure safety.
- Buffer Parts High-elastic rubber pads (3-6 mm steel-lined, Shore A85°) and EVA pads (independent/continuous roll) absorb impact and vibration, reduce friction between rail and foundation, and extend service life.
- Support Parts Steel base plates/pads (independent/continuous) – disperse lifting loads, transfer them evenly to the foundation, avoid local damage, and assist rail levelling and fixing.
- Auxiliary Materials Grouting material – fills gaps between rail, foundation and supports, strengthens system stability, prevents shaking, and ensures smooth operation.
Full-Scene Adaptation Scope
Gantry cranes (STS/RTG/RMG), overhead cranes, monorail cranes, ladle cranes, automated stacking cranes (ASC), rail-guided vehicles (RGV), jib cranes
concrete,
steel beams,
ballast foundation
compatible with the mainstream track standards of countries/regions worldwide, such as China, Germany, the United States, Japan, Europe, Australia, and South Africa
Product classification
Covers light, medium and heavy-duty working conditions, fully meeting the demands of various industrial scenarios including ports, metallurgy, warehouses and more.
For models not marked as in-stock, non-standard customisation services are provided to satisfy special requirements such as non-standard equipment, limited space constraints and extreme loads.
Technical drawings in PDF/DWG formats are available for all rail types, including dimensions, technical parameters and cross-sectional diagrams, fully satisfying engineering design, drawing review and on-site construction requirements.
| Crane Rail Series | Executive Standard | Core Material | Typical Stock Models | Standard Length | Adaptable Working Conditions | Supply Method |
|---|---|---|---|---|---|---|

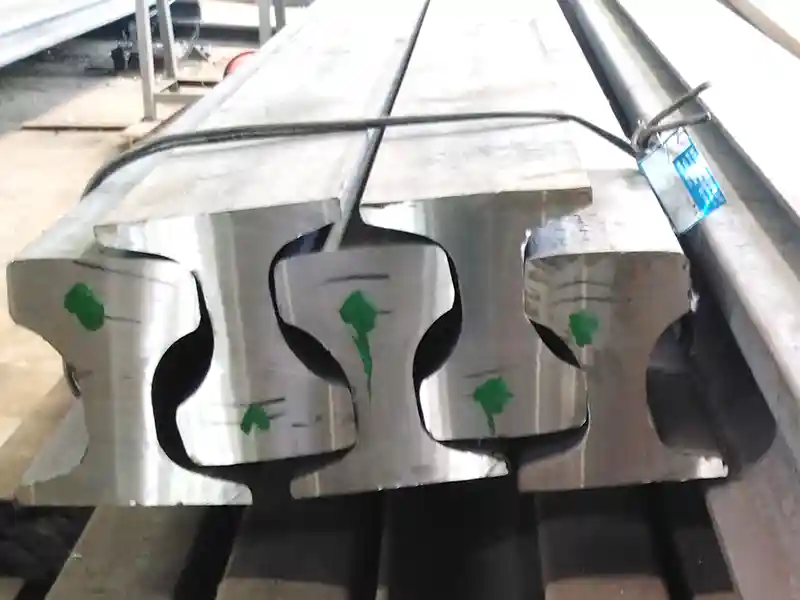

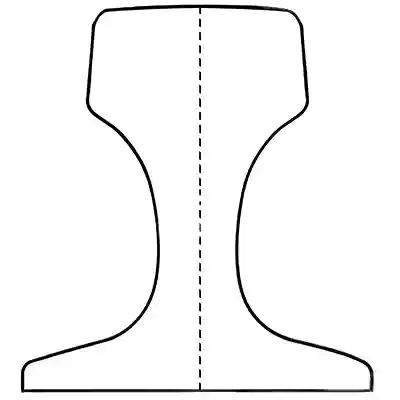

| QU Series | China YB/T 5055-2014 | U71Mn / U75V | QU70 / QU80 / QU100 / QU120 | 12m | Heavy-duty, gantry cranes / overhead cranes | In stock |

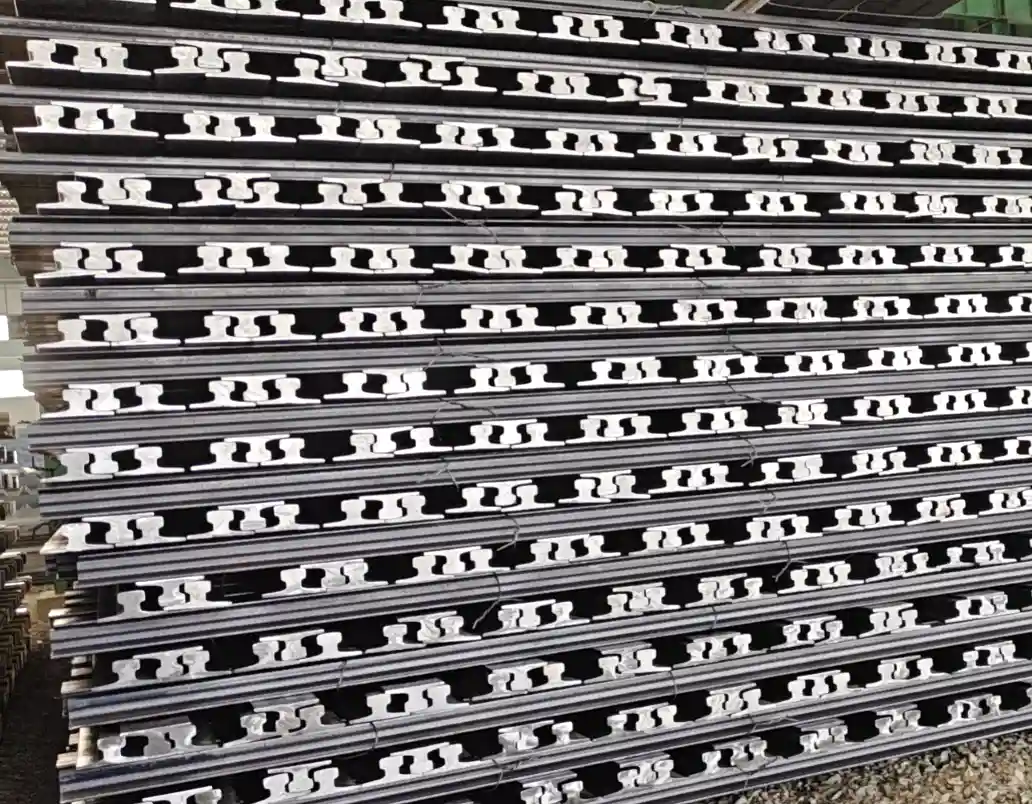

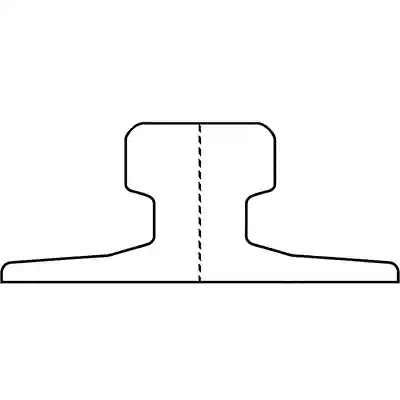

| DIN536 A Series | German DIN536 | 50Mn / U71Mn | A45 / A55 / A65 / A75 / A100 / A120 / A150 | 10 / 12 / 15m | Medium / Heavy-duty, ports / metallurgy / shipyards | In stock |
| UIC Series | EN 13674-1 | 900A / 1100 Alloy Steel | UIC50 / UIC54 / UIC60 | 12–25m | Medium / Heavy-duty, universal for multiple industries | In stock |
| ASCE Series | ASTM / AREMA (USA) | 700 / 900A / 1100 | ASCE25 / 40 / 60 / 75 / 85 | 6–25m | Light / Medium-duty, warehouses / industrial buildings | In stock |

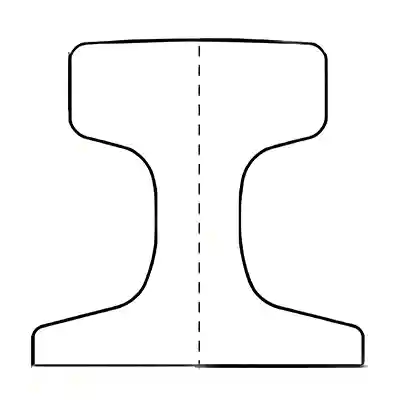

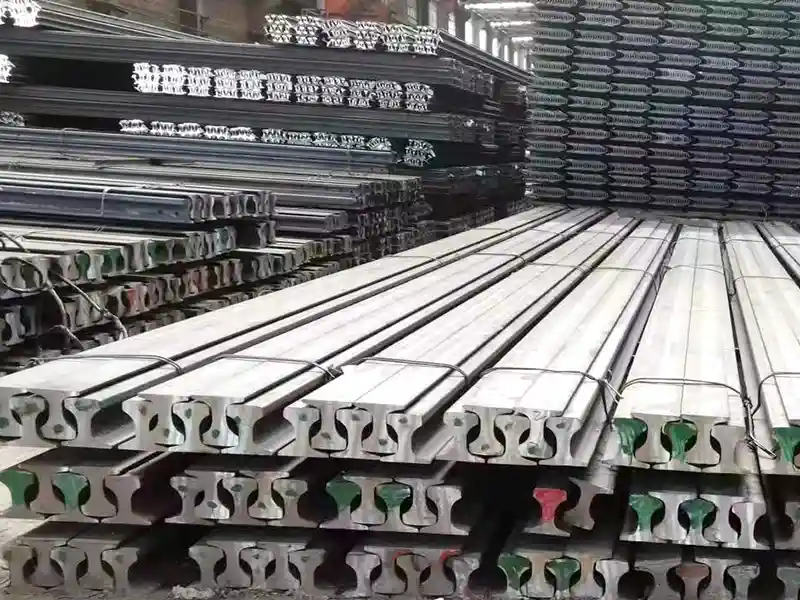

| JIS Series | JIS E1101 / E1103 (Japan) | JIS Standard Special Alloy Steel | 15kg / 22kg / 30A / CR73 / CR100 | 6-12m | Compatible with Japanese equipment, ports / manufacturing | In stock |

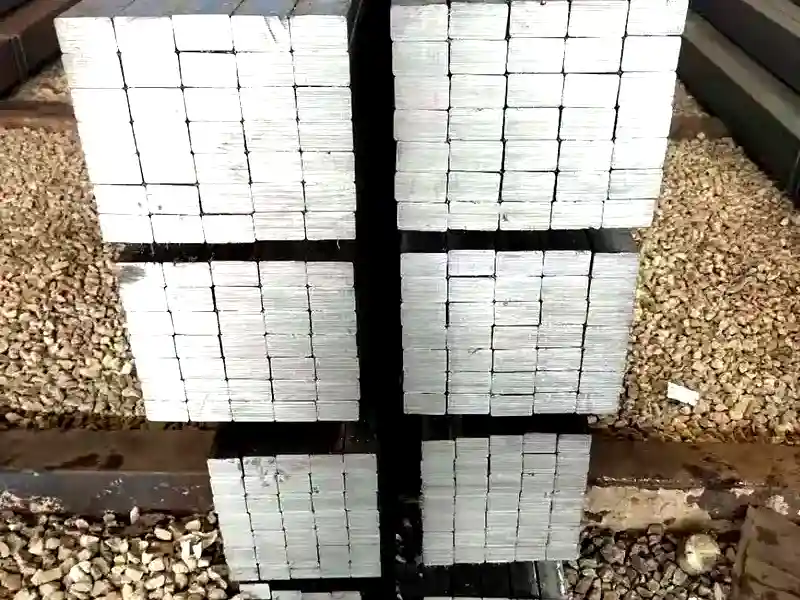

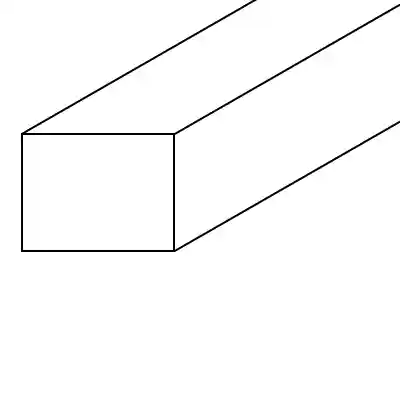

| Square Flat Steel Track | General Industrial Standard | Q345B / S355JR | 30×30 ~ 100×100mm | Customized | Light-duty, monorail cranes / small jib cranes | Customized |
| Other International Series | BS / AS / ISCOR | 700 / 900A | BS60A / AS50kg / ISCOR48kg | 8–25m | Region-adapted for overseas projects | In stock + Customized |
Selection Tips
Track selection is not just about size matching; it is necessary to comprehensively consider the allowable wheel load, section moment of inertia, steel grade, frequency of use, and environmental conditions (high temperature / corrosion / outdoor). Our professional engineers can accurately match the optimal model based on actual parameters.
product Photos

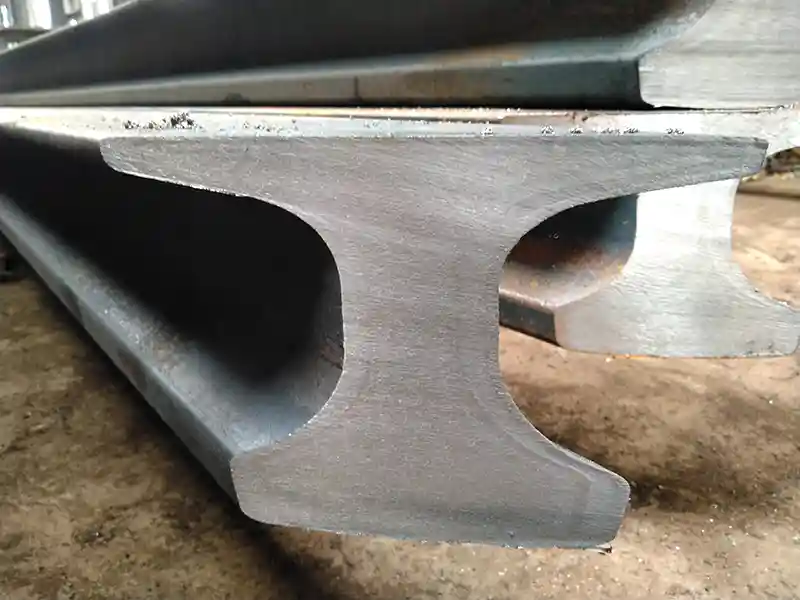

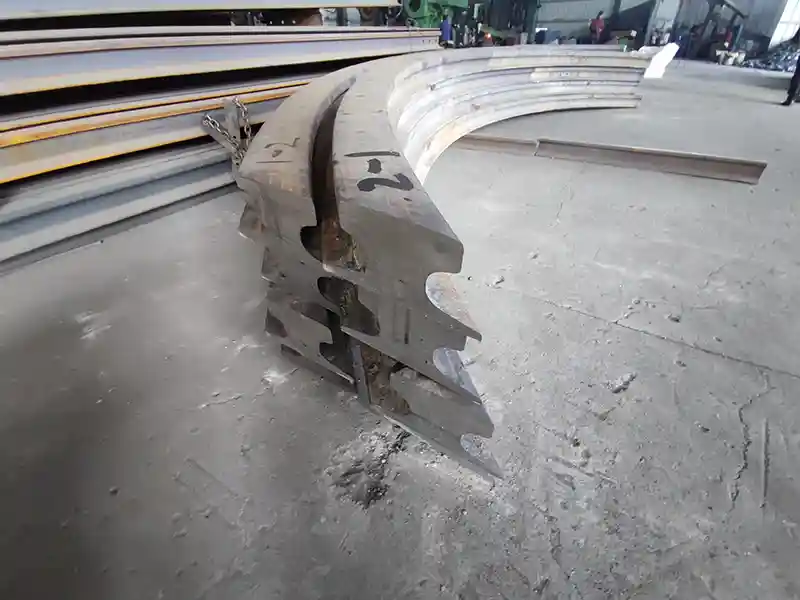

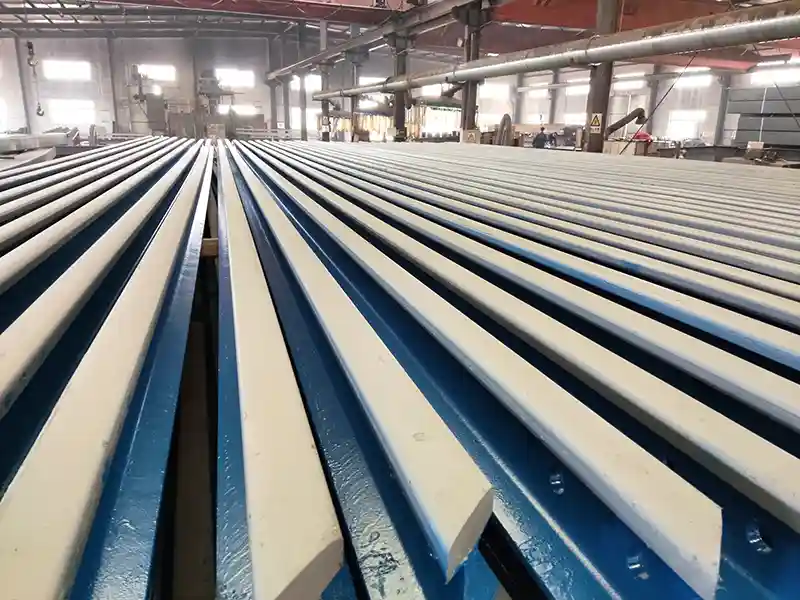

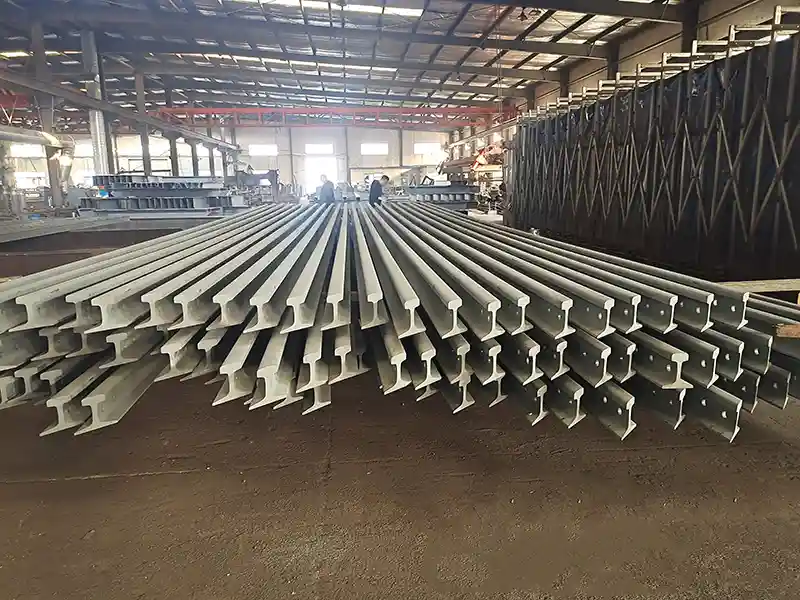

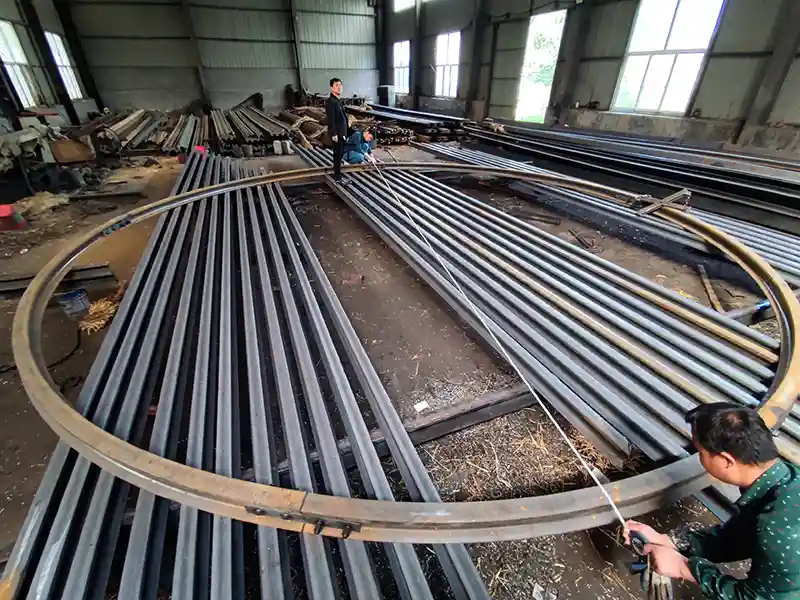

Customization & Integrated Supporting Services
Brand Strength & Quality Assurance
20+ Years of Industry Expertise in Heavy Rail R&D and Production
With over 20 years of experience in the crane rail industry, focusing on port, metallurgy, shipyard, power, and other heavy industries.
We provide long-term stable rail system solutions for the world’s leading port operators, with leading technology and experience.
Strong Supply Chain, Fast Stock Delivery & Reliable Customization
In-depth cooperation with 7 major steel mills in China, ensuring stable and controllable raw material quality.
Professional stock warehouse with sufficient inventory of standard models – 3-day delivery upon payment.
Standardised production workshop with strong mass customisation capacity, controllable delivery schedule and global cross-border transportation support.
Global Standard Compliance & Rich Overseas Project Experience
Covering mainstream rail standards of more than 20 countries and regions.
Completed projects in Southeast Asia, the Middle East, Europe, Australia, Africa and other regions.
Familiar with local construction codes and project requirements, providing full-process technical support for overseas projects.
Professional Technical Team, 1v1 Full-Process Support
Our experienced engineering team provides full-process services:
selection & design → processing guidance → on-site installation → commissioning & maintenance.
Exclusive 1v1 technical support for each project, from initial inquiry to final commissioning.
Strict Quality Control & International Standard Compliance
All rails undergo full inspection before delivery: dimensional accuracy, tensile strength, wear resistance, and flatness.
Third-party inspection reports are available for customised rails upon request.
Products comply with international industrial standards, ensuring long-term stable operation of rail systems.
