Rail Pads
Glory Rail·Professional rail rubber pad solutions · Ensuring safe and efficient operation of track systems
Accumulating rich experience in rail vibration and noise reduction, providing mature and reliable product solutions.
Serving global customers, offering integrated rail systems that combine standardization and customization.
High elasticity, anti-aging, low rigidity, extending rail service life and improving riding comfort.
Rail Rubber Pad
—Elastic Protection & Load-Bearing Solution
Rail rubber pads are high-performance elastic elements installed between the rail and its supporting structure. They form a resilient support layer that distributes loads evenly, absorbs shocks and vibrations, reduces noise and local stress concentrations, and compensates for minor irregularities in rails or supports.
By minimizing wear and fatigue, they significantly extend the service life of rails and supporting structures. Compatible with Glory Rail clips to create a complete elastic rail installation system.
Suitable for ports, factories, mines and railway applications; supports various rail profiles (43/50/60 kg/m, QU series, UIC-54/60, etc.) and meets international and national standards including UIC, AREMA, BS, DIN and GB.
Product Categories

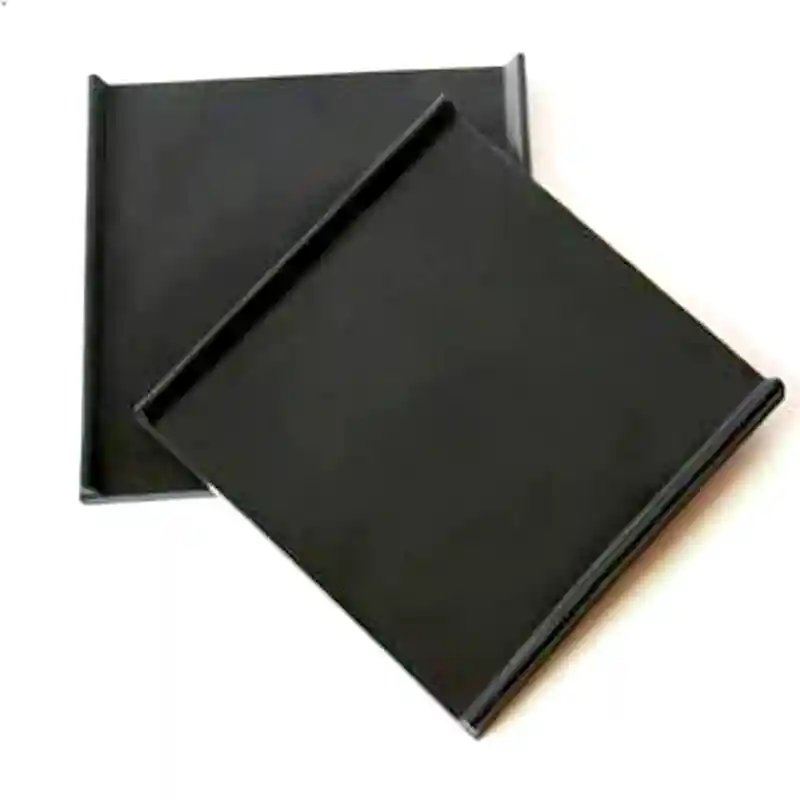

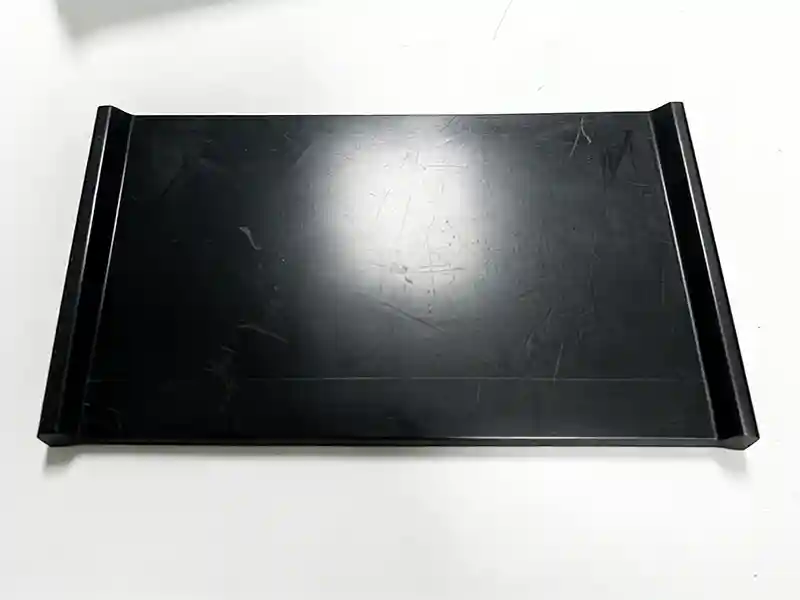

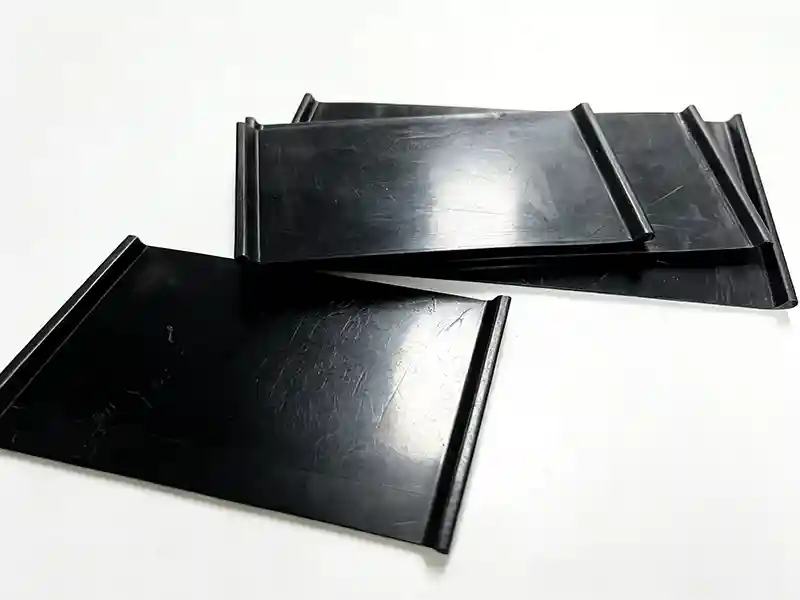

Individual Rail Pads
Provide a modular and easy-to-maintain local support solution for scenarios with independent base plates or short rail sections.
Key Features
• Modular independent design, easy to install and disassemble, with efficient maintenance;
• Effectively disperse local stress to prevent excessive wear on contact surfaces;
• Fit well with independent base plates, with strong adaptability;
• Balanced elasticity, suitable for frequent starts and stops (such as MK2 series).
Applications
In-plant/workshop crane rails, short rail systems, medium-load ports and warehouses, rail renovation and maintenance projects.

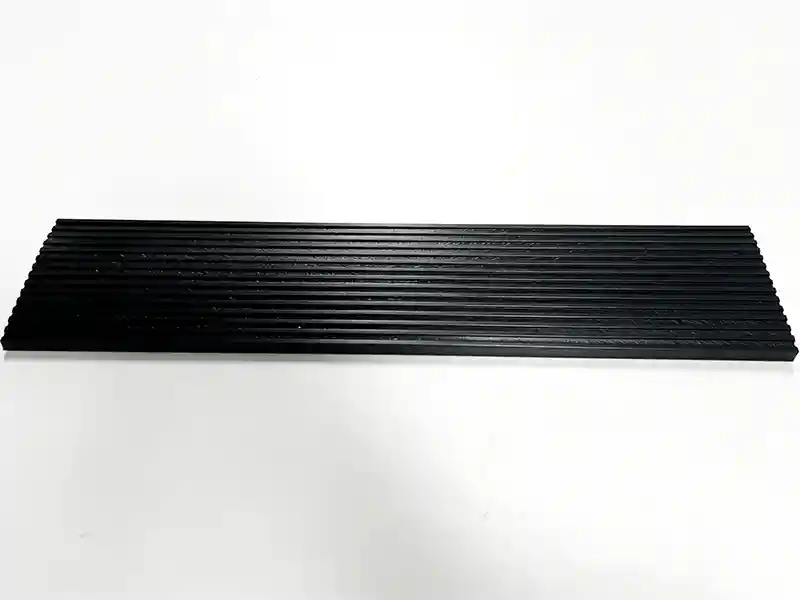

Continuous Rail Pads
Provide full-length elastic support for heavy-duty and high-performance tracks, ensuring continuous stability under extreme working conditions.
Key Features
• Integrated continuous structure with no breakpoints in load transmission;
• Built-in steel skeleton (such as MK7/MK8) enhances pressure resistance and wear resistance;
• Optimized grooves and nonlinear deflection response reduce bending stress;
• Excellent sealing performance inhibits fretting corrosion and extends service life.
Applications
Port cranes (STS/RMG/RTG), bridge/gantry cranes, high-speed and automated tracks, concrete beam/slab tracks.

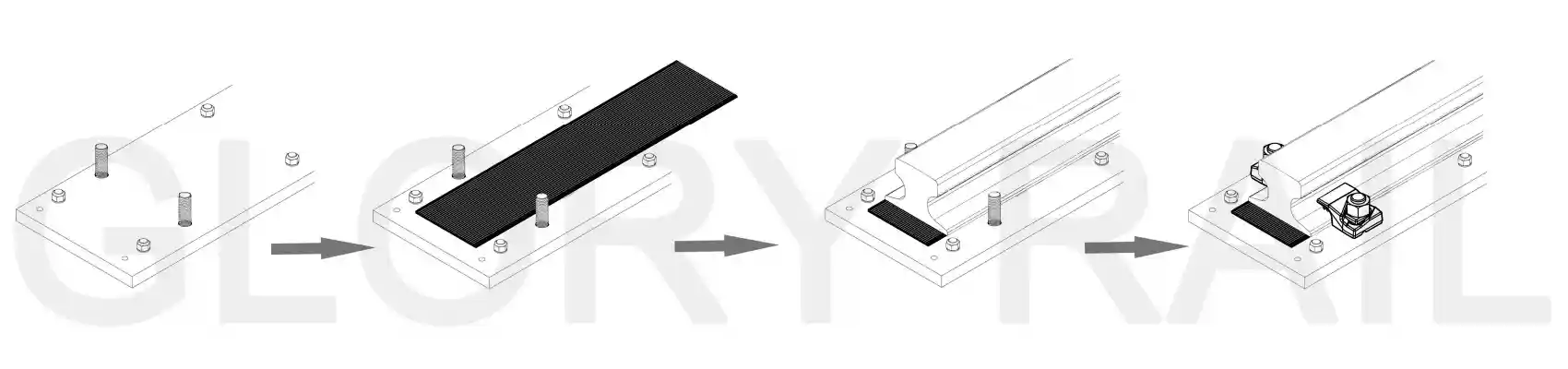

Rail Pads Installation Steps
1.Insert bolt(s) through hole(s) in rail
supporting structure.
2.Before installing rubber pad, the supporting area should beclean
and free of oil.
Laying the rubber pads on the support.

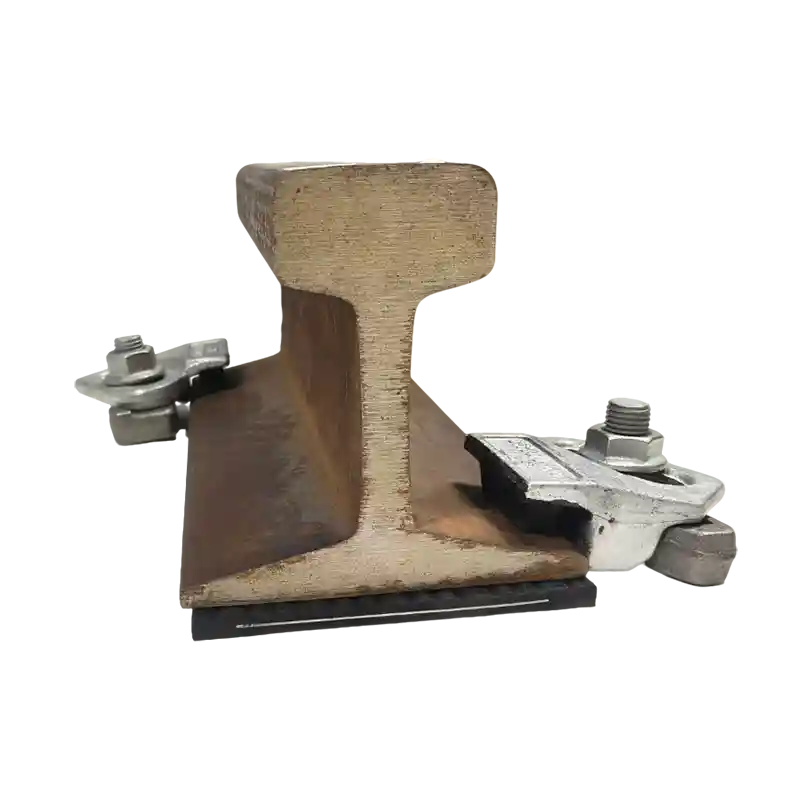

3.Install the rails on the rubber pads
4.Place body of clip over bolt(s) with rubber ‘nose’ resting onupper
surface of bottom flange of rail.
Move clip into metal-to-metal contact with bottom edge of rabil.
Bottom face of clip will not be in full contact with rail support.
Place special washer(s) over bolt(s).
Tighten nut(s) with spanner.
With hammer of about 1 kilo, tap clip body towards rail along
Tighten nut(s) to required torque given on product datasheet
direction of slot(s) in clip.
Quick Selection Guide
| Selection Criteria | Continuous Rail Rubber Pads | Individual Rail Rubber Pads |
|---|---|---|
| Core Requirements | Continuous support, heavy-duty operation, high seismic resistance | Easy installation, flexible maintenance, local support |
| Load Capacity | High load, high-frequency impact | Medium load, regular operation |
| Installation Scenarios | Continuous track beams/slabs, long-stroke tracks | Independent base plates, short rail sections, renovation projects |
Product Photos
Professional Materials & Customization Services
SBR (Styrene-Butadiene Rubber)
High wear resistance and excellent cost-performance — suited for standard heavy-load environments.
NBR (Nitrile Butadiene Rubber)
Superior oil and chemical resistance — engineered for harsh service conditions.
EVA (Ethylene-Vinyl Acetate)
Lightweight, shock-absorbing and flexible — delivers excellent cushioning and easy installation.
Comprehensive Customization
From standard sizes to bespoke specifications, we provide end-to-end customization. Whatever your challenge — rail profile, load demands, or installation environment — we design and manufacture the optimal rail rubber pad solution to meet your project requirements.
Have no idea which one to choose?
Why choose Glory Rail’s Rail Rubber Pads?
Significantly cuts operational noise and vibration for a quieter, more comfortable workplace with less external disturbance.
Improves load distribution and disperses stress concentrations, safeguarding valuable track foundations.
Minimizes direct wear between rail and fastenings, substantially prolonging the service life of the entire track system.
Reduces fatigue-related failure risk, improving overall track reliability and safety.
Automatically compensates for minor track or foundation irregularities, maintaining stable and comfortable ride quality.
Effectively isolates rail-to-structure contact, reducing electrochemical corrosion and protecting your investment.
