Rail Clips
About Us & Our Strength
With over 20 years of rail clip R&D and production experience, Glory Rail starts with Chinese standard rail presses, providing full-range rail clips and solutions for global customers and long-term supplying major mines, docks and shipyards.

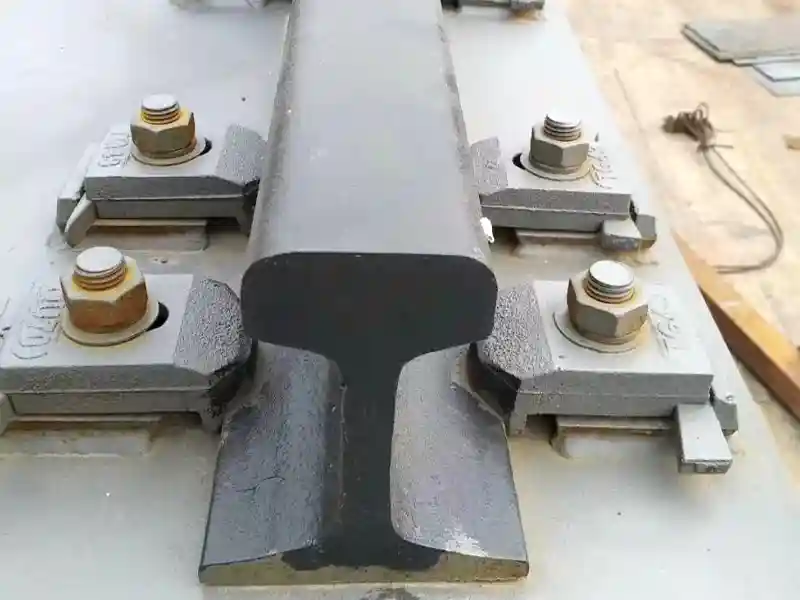

Rail fixing clips (also known as rail clips/rail clamps) are the core precision fixing components of crane track systems. Designed specifically for the high-precision tolerance requirements of track installation, they serve as the connection hub between the track and supporting structures (steel beams, concrete, ballast). They directly determine the installation accuracy, operational stability, and service life of the track system, and are essential core accessories for various rail-mounted lifting equipment such as gantry cranes, overhead cranes, and automated stackers.
Core Functions and Design Purpose
- Achieve precise alignment and firm fixation of the track, restrict excessive lateral displacement, vibration, and deviation of the track during crane operation, and ensure the stable operation of lifting equipment;
- Efficiently bear the horizontal lateral load (perpendicular to the track direction) exerted by crane wheels, and at the same time disperse the pressure transmitted by the track to avoid local damage to the supporting structure;
- Adapt to different track profiles, installation foundations, and industry load requirements, provide flexible installation method options, and balance construction convenience and working condition adaptability.
Bolted Rail Fixing Clips
Core installation characteristics
- Bolt connection — no welding required; simple, quick installation.
- Supplied with grade 8.8 high-strength bolts as standard.
Core performance and advantages
- Cost-effective for light-to-medium duty applications — reduces procurement and installation costs.
- Low-profile design — compatible with guide rollers and does not interfere with adjacent equipment or accessories.
- Flexible installation — easy maintenance and disassembly for later service.
- Supplied with a full set of accessories and installation guidance to reduce installation errors.
Suitable operating conditions
Light-to-medium duty environments such as industrial buildings and high-racking warehouses; typical uses include bridge cranes, monorail/ single-rail cranes, rail-guided vehicles (RGVs), and small transfer vehicles.

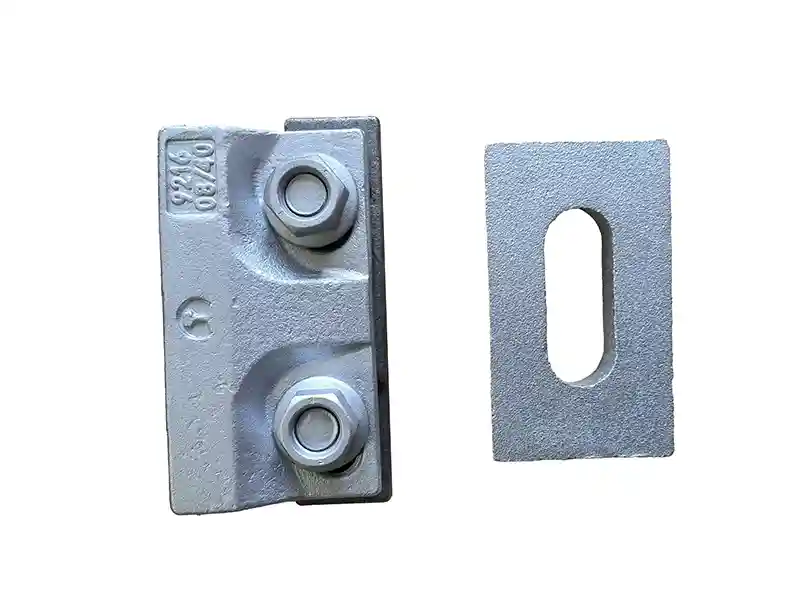

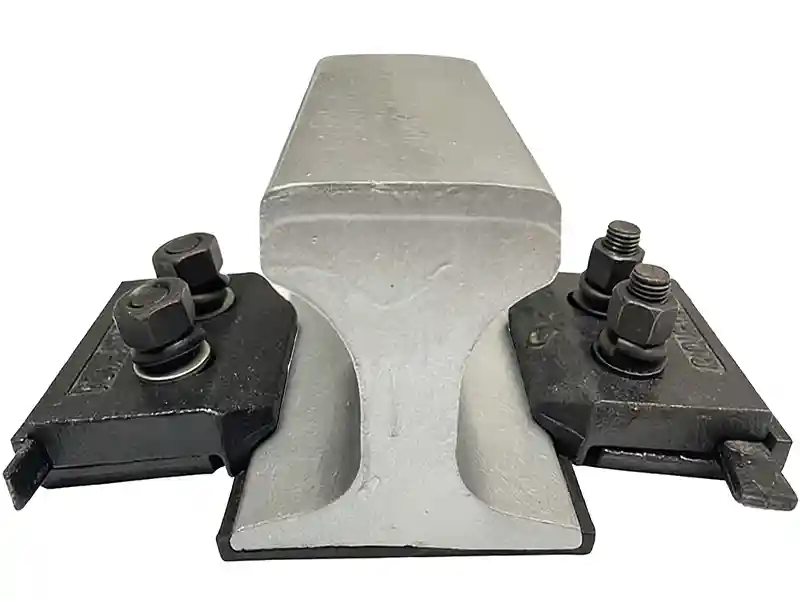

Welded Rail Clips
Core installation characteristics
- Welded attachment — can be installed from above the rail beam, making it suitable for work at height and in confined spaces.
- Compact structure — for the same footprint it delivers higher load capacity and saves installation space.
Core performance and advantages
- High load capacity — suited for heavy loads and high-frequency operation; vibration-resistant and resistant to lateral movement.
- Very secure installation — long-term use without loosening.
- Compatible with a wide range of heavy rail profiles and capable of meeting high-precision requirements.
- Supplied with professional welding procedure guidance.
Suitable operating conditions
Heavy-duty industrial settings such as steel mills, ports, and power plants; typical applications include ladle cranes, gantry cranes, and large automated stacker/reclaimer systems.
Core Difference Comparison
| Comparison Dimension | Bolted Rail Fixing Clips | Welded Rail Fixing Clips |
|---|---|---|
| Core Installation Requirements | No welding skills required, simple operation | Professional welding qualifications required, construction according to process |
| Bearing Capacity | Light to medium load | High load, stronger bearing capacity under the same size |
| Economic Cost | High cost performance, low procurement/construction cost | Slightly higher, suitable for high-budget heavy-duty projects |
| Later Maintenance | Convenient disassembly, replacement and fine adjustment | Firm structure, less maintenance, professional operation required for disassembly |
| Core Design Highlights | Low profile, suitable for guide rollers | Compact and small, friendly for high-altitude construction |
Rail Clip Classification & Models
Our rail clips cover almost all rail fixing needs, mainly divided into two categories, with complete models for direct selection:

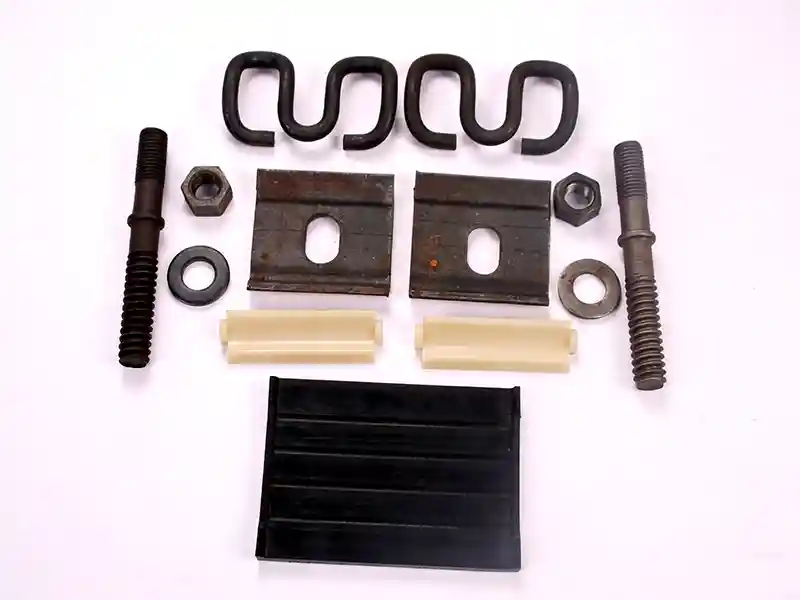

Elastic Rail Clips
Suitable for transport rail tracks, including spring bars and spikes.
Crane Rail Fixing Clips
Divided into welded type and bolted type, with adaptive flexible design for crane rails:

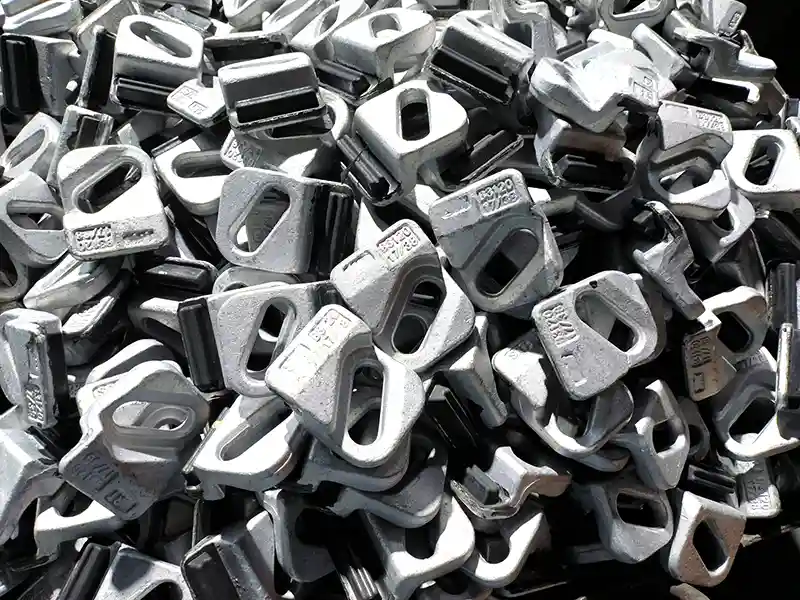

- Bolted Rail Clips: 3116 / 3120 / 3124 / 3216 / 3220 / 3224
- Welded Rail Clips: 9116 / 9216 / 9120 / 9220 / w116 / w120 / w216 / w220
Other Series Rail Clips

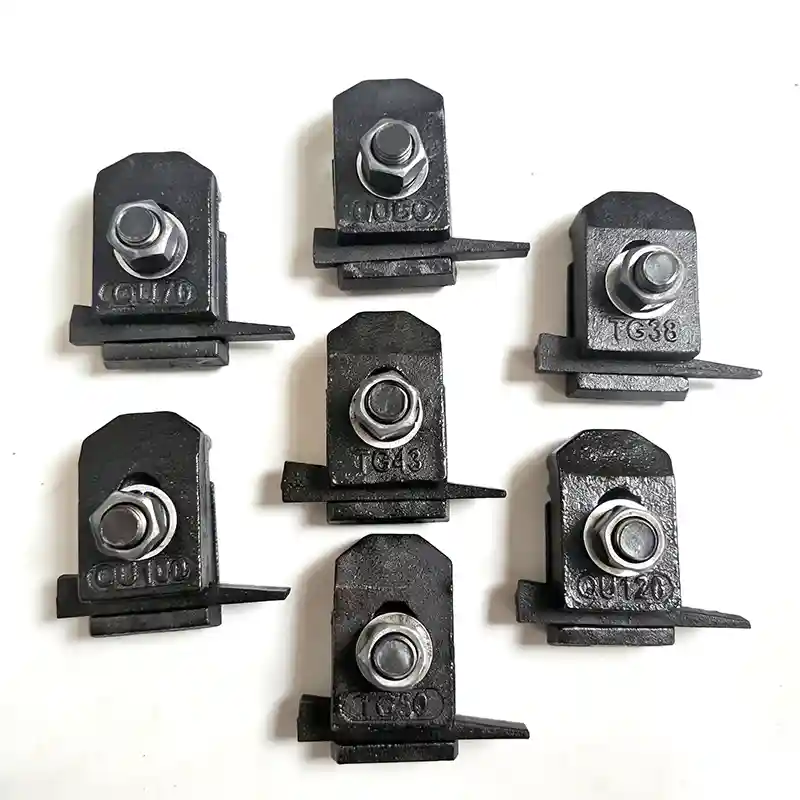

- WJK Rail Clips: TG38/TG43/TG50/TG60/QU70/QU80/QU100/QU120
Standardized Supply & Customized Solutions
Standard Stock · One-Stop Accessories · Rapid Delivery
Model coverage: Main bolted and welded specifications; fits common rail profiles (UIC, DIN, national standards).
Complete accessories: High-strength bolts, shims, elastomer nose pieces, clamp plates, rail pads, spare parts.
Delivery advantage: In-stock items enable rapid shipment for urgent installations and replacement needs.
EM/ODM Customization · 1:1 Engineering Support
Dimensions & structure: Match non-standard rail sections and special support/installation conditions.
Materials & coatings: High-temperature, anti-corrosion, wear-resistant forgings; zinc plating, powder coating and other protective finishes.
Functional upgrades: Fine-adjustment mechanisms, high lateral-load resistance, interfaces for special auxiliary equipment.
Core Components + Consumables · Single Source Supply
Full accessory portfolio from main units to wear parts, reducing multi-vendor procurement and delivery risk.
FAQs
How do I submit a custom request?
A: Contact our engineering team directly for 1:1 support.
How are samples produced and accepted?
A: We produce samples for functional and strength testing. After sample approval, we proceed to mass production.
Can accessories be matched to third-party rails?
A: Yes — we can adapt components to your rail profile to ensure interchangeability and reliable installation.
contact us
Pre-sales — Free selection and solution design
• Free one-on-one selection consultation. Engineers propose precise solutions based on track profiles, lifting loads, installation foundations, and construction conditions.
• For large-scale projects, overall design of the track fixing system can be provided (product layout, installation process, mechanical calculation).
In-sales — Full-process installation guidance and training
• Provide standardized installation manuals and videos, specifying steps, parameters, and quality standards.
• For large/complex projects, engineers can be dispatched to guide on-site and solve construction technical problems; free installation and quality control training is provided for the construction team.
After-sales — Quality assurance and spare parts supply
• Industrial-grade quality assurance. For non-human-caused quality issues, free repair or replacement is available within the warranty period.
• Long-term supply of spare parts (bolts, gaskets, etc.) with sufficient inventory; engineers respond promptly to inquiries about use and maintenance.
